Overview
DEV CABLE’s ESP cables are engineered specifically for the power-delivery demands of Electric Submersible Pump installations in oil and gas production wells. They operate reliably in the harshest downhole conditions: temperatures up to 232 °C, continuous contact with crude oil, brine, and hydrogen sulfide, and extreme mechanical tension during run-in and retrieval.

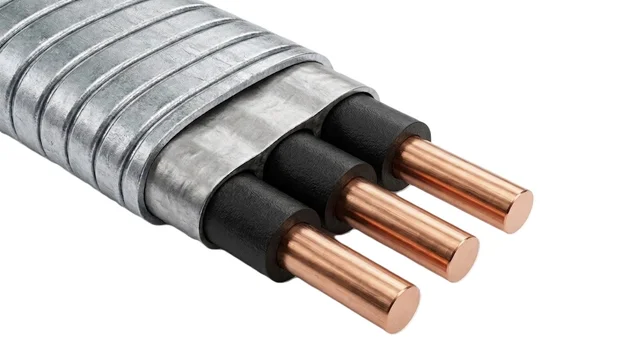

The cables are available in both flat (space-efficient for small-diameter casings) and round (higher current capacity) constructions, with a range of insulation and armor combinations to suit individual well profiles.
Construction Layers
- Conductor — High-conductivity copper or copper alloy, Class 2 or Class 5 stranding
- Insulation — EPDM or EPR compound rated to 232 °C in oil environments
- Jacket — Oil-resistant nitrile or thermoplastic rubber
- Armor — Single-layer steel or Monel tape, or corrugated metallic sheath
Ordering Information
Provide well depth, casing ID, operating temperature, pump motor kW rating, and required armor type. Our engineering team will specify the correct cross-section and construction and provide a formal quotation within 48 hours.
