Overview
TC-ER Cable is a tray cable construction used for industrial power, control, and equipment connection projects where cable tray routing and exposed run conditions are part of the installation plan. This page focuses on a construction using stranded copper conductor, XLPE insulation, and a PVC jacket for buyers in the Philippines, Malaysia, the Middle East, Turkey, Russia, and African markets.
For exposed run use, the exact product must be reviewed for TC-ER marking, applicable listing, project specification, and local code acceptance. UL 1277 is a key reference for tray cable constructions, while the NEC provides installation context for projects that follow U.S.-style code requirements.
Key Features
- Industrial tray cable construction: Intended for tray cable applications in factories, utilities, processing facilities, and equipment systems.
- Stranded copper conductor: Supports conductivity and practical routing during installation.
- XLPE insulation: Provides a robust insulation system for industrial cable designs when matched to the confirmed voltage and temperature rating.
- PVC jacket: Offers a practical outer jacket for general industrial handling, tray routing, and project-specific cable identification.
Applications

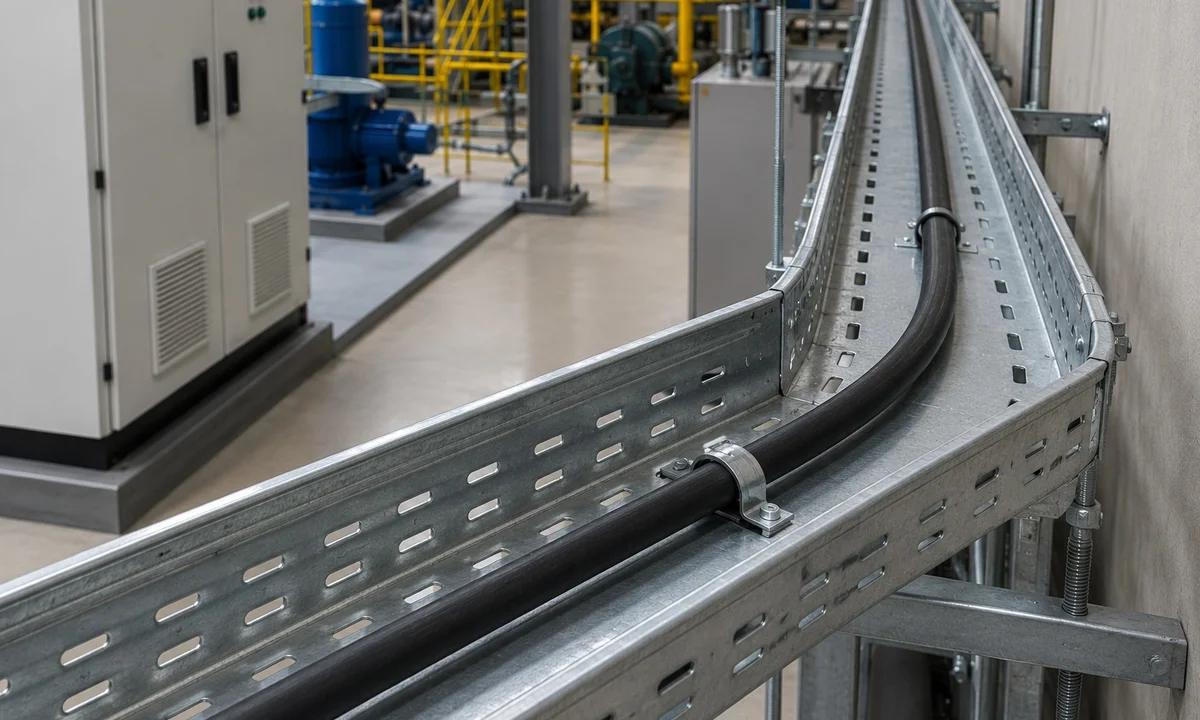

TC-ER Cable is commonly specified for industrial environments where cable tray systems are used to organize and protect power or control circuits. Typical project contexts include:
- Industrial production lines and machinery systems
- Control panels, motor control centers, and equipment connections
- Utility and infrastructure facilities
- Oil, gas, mining, cement, and processing plants
- Export projects requiring clear cable construction and standard references
For the Philippines, Malaysia, the Middle East, Turkey, Russia, and African markets, buyers should confirm whether the final project requires U.S. style tray cable references, local electrical approval, climate-related jacket requirements, or additional documentation.

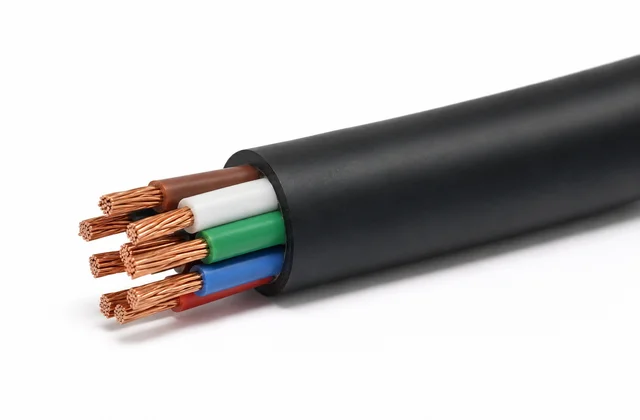

Technical Specifications
| Item | Description |
|---|---|
| Product Type | TC-ER Cable, Tray Cable - Exposed Run |
| Conductor | Stranded copper conductor |
| Insulation | XLPE |
| Jacket | PVC |
| Standard Reference | UL 1277 for tray cable construction, subject to confirmed listing |
| Installation Context | Cable tray and exposed run applications where permitted |
| Common Use | Industrial power, control, and equipment wiring |
| Market Focus | Philippines, Malaysia, Middle East, Turkey, Russia, African region |
Standards and Compliance Notes
UL 1277 is commonly referenced for tray cable constructions, including many industrial power and control tray cables. For TC-ER use, buyers should confirm that the cable is specifically marked and documented for the required exposed run application.
The NEC is an installation code, not a product certification. Suitability for NEC-governed installations depends on the cable type, marking, installation method, project specification, and approval by the authority having jurisdiction.
For export projects outside the United States, UL 1277 and NEC language may be used as a technical reference, but local project approval, documentation, and installation practice must also be reviewed.
Selection Guidance
When requesting a quotation for TC-ER Cable, provide:
- Conductor size and number of conductors
- Required voltage rating and temperature rating
- Shielding or grounding requirements
- Jacket color, printing, and oil or sunlight resistance requirements
- Required standard, listing, or project documentation

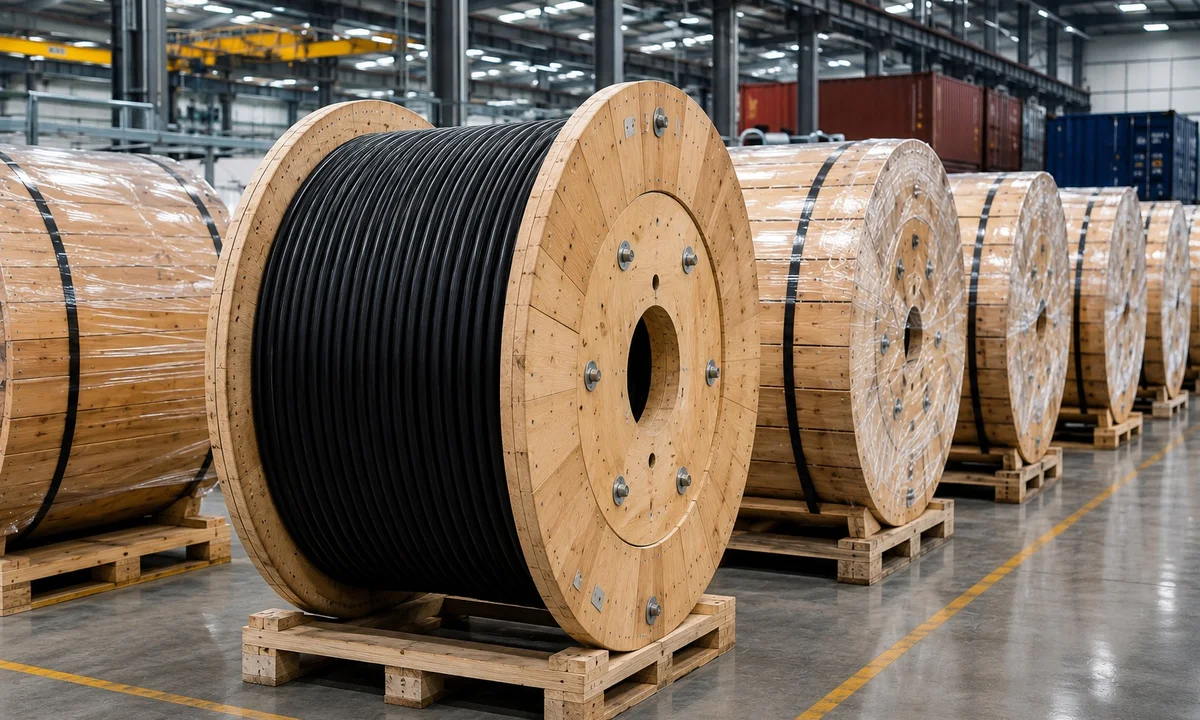

- Packaging preference, such as coils, reels, or wooden drums
- Destination country, port, quantity, and expected delivery schedule
FAQ
Is TC-ER Cable the same as ordinary tray cable?
Not exactly. TC-ER refers to Tray Cable - Exposed Run. Exposed run use depends on the exact cable marking, construction, and installation conditions. Buyers should confirm TC-ER marking and project requirements before use.
Does UL 1277 mean the cable can be used in every exposed run application?
No. UL 1277 is a key tray cable reference, but exposed run suitability must be confirmed by the actual cable marking, listing, installation method, and applicable code requirements.
Is the NEC a certification?
No. The NEC is an installation code and does not certify products. For NEC-governed projects, the cable type, marking, installation method, and authority review determine suitability.
What information is needed for an accurate TC-ER Cable quote?
Provide conductor size, conductor count, voltage rating, insulation, jacket, shielding, standard or listing requirements, packaging, quantity, and destination country or port.
